Hi experts
I’m using Factory Studio connect with SQL server for storing data from Factory studio into SQL Server.
The declaretation in Factory for TagHistorian Database as below picture

image1688×446 42.9 KB

Everything worked well, Connetion between Factory and SQL was normal.
But in my project, I have an advanced requirement. I need to change ConnectionString of DB in factory during runtime operation.
I created a button with Code Behind to change ConnectionString of DBs. During Runtime operation, I could change ConnectionString of DBs, but Factory couldn’t connect to new Datasource. After that I paused and start again Dataset function in Startup Window.
The reason I have to change datasoure during runtime operation, when original Database of SQL Server is full Capacity, I need connect Factory studito to a new Database.
Please help me this case
Best.

#2

Hi Manh,

We did some tests in our labs and we couldn’t reproduce the issue. We did the test using SQLite using 2 different databases DB1 and DB2.

You can see in the image below that we could write values in database:

1600×782 199 KB

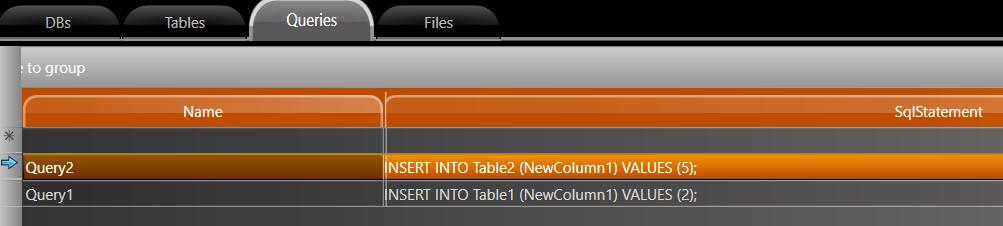

Using the following Queries:

1003×226 21 KB

And in the CodeBehind the buttons do this:

962×344 12.3 KB

When we “Change Data Source” and do the query it will be executed correctly.

What version are you using?

A video is attached to see if this is what you want.

Bests,

Tatsoft Team.

#3

Dear experts
Many thanks your quick feedback.
Can you send me the test project ?
I’m using 9.2.26 - SP2 version
Best

#4

Hi Manh,

Follow the download link:

The only thing you will have to do is to change the database path in Datasets > DBs > ConnectionString. And so, it should work fine.

Bests,
Tatsoft Team.
